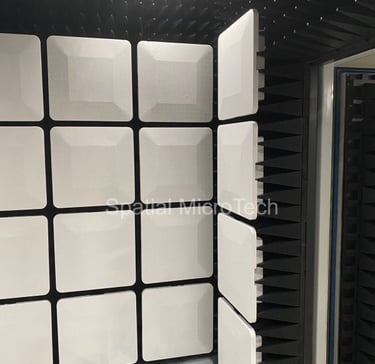

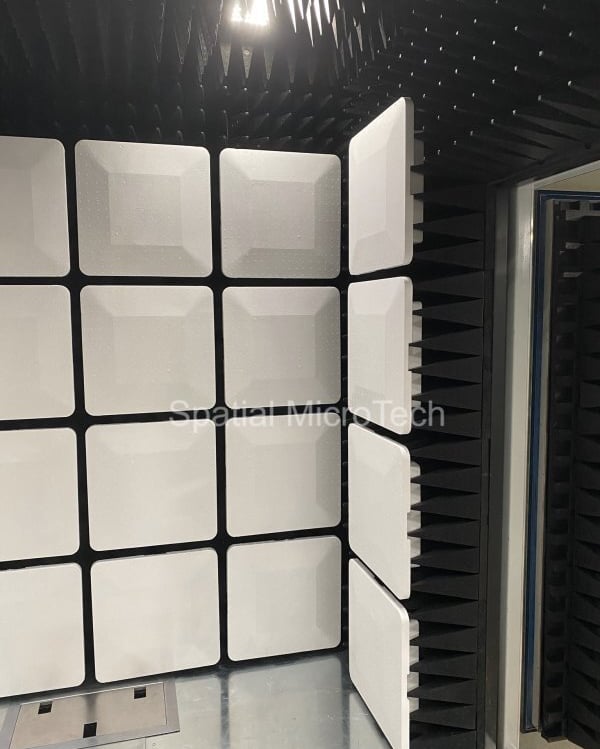

Fully Anechoic Chamber
Fully Anechoic chambers are widely used in both EMC and Antenna chambers for test application which required ground absorbers and fully lined Pyramidal wall absorbers. DMC FAC series can be utilized in Automotive, Military, Telecom and Defense test applications.
Fully Anechoic EMC Chamber
Full Compliance Emission per ANSI C63.4 and CISPR-16
Normalized site attenuation deviation (NSA) is better than ±3.5 dB between from 30MHz to 1 GHz sVSWR deviation better than ±5.5 dB from 1 GHz to 18 GHz.
Full Compliant Immunity per IEC/EN 61000-4-3
Field Uniformity deviation better than 6 dB at 75% of 16 measuring points from 26 MHz/ 80 MHz to 18 GHz
Load capacity1500 Kg (Minimum), Higher load capacity option available
Frequency range30 MHz to 40 GHz
Request Datasheet
Reach out for custom RF absorber solutions.
