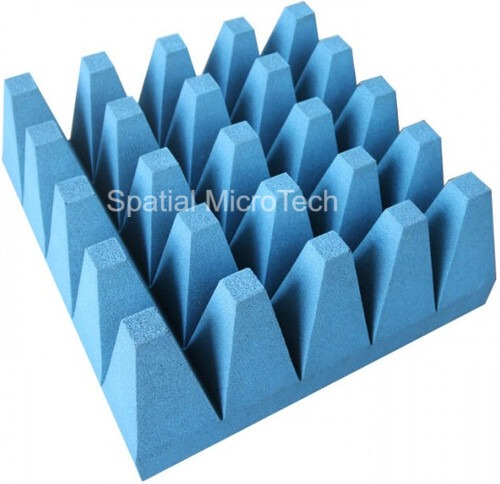

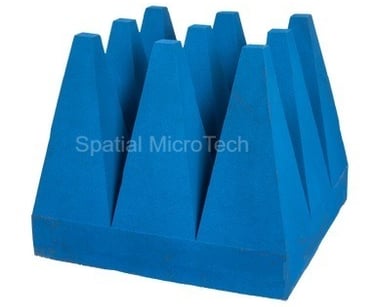

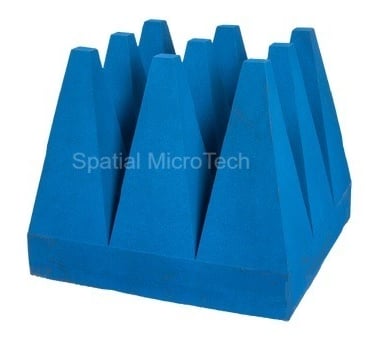

High Performance RF and Microwave Truncated Absorber

RF Truncated Absorbers made of Polyurathane Foam and Ferrite Tiles are to provide large working space inside chamber, stronger resistance capability against mechanical damage and eliminating drooping of tips

Polyurathane - PU foam based Hybrid absorbers for EMC anechoic chamber

Frequency range 80MHz to 40GHz
Typical reflectivity as high as -30dB
Power handling capacity 1.5kW/m2,
Radiated field strength 540 V/m CW
Standard : MIL-STD-461 E/F
Fire Retardant per NRL-8093 1,2,3, UL 94 and DIN 4102-B2
Continuous working temperature up-to 90°C
RoHS Compliant
Zero Carbon dust

Part numbers :

SMT-PU-TR-HY-300

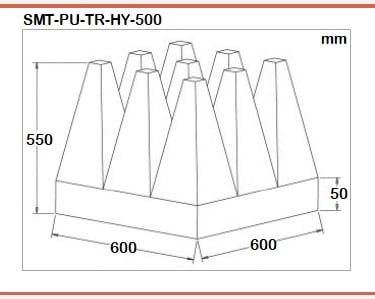

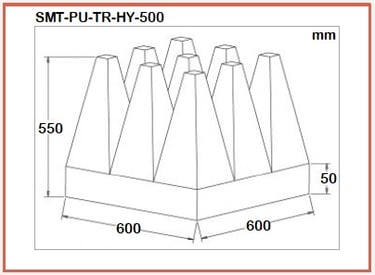

SMT-PU-TR-HY-500
SMT-PU-TR-HY-700
SMT-PU-TR-HY-1000

gray computer monitor

Request Datasheet

Reach out for custom RF absorber solutions.
